160V (EA/1)

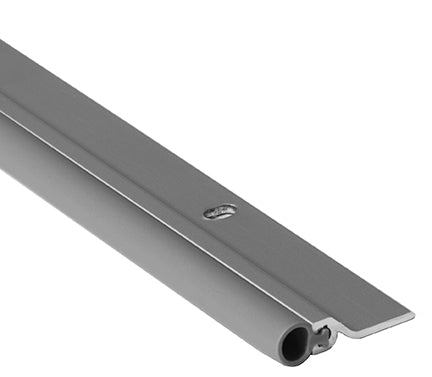

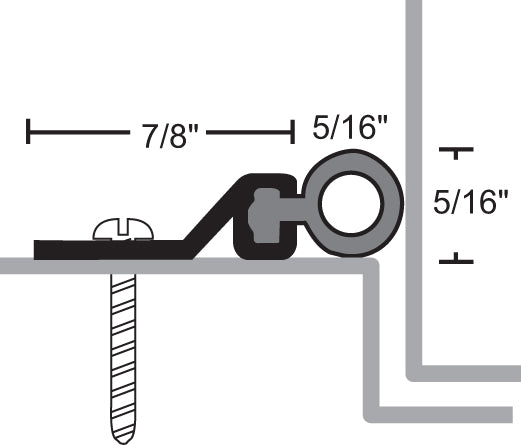

Vinyl Perimeter Seal - Mill Aluminum Finish - 7/8" Holder Width - 1/4" Holder Height - 5/16" Insert Projection
Height can be cut to fit 80" doors.
Product Features
- Aluminum alloy 6063, T5 temper
- Thermoplastic polymer: Polyvinyl Chloride formulated with an environmentally friendly Bio-based plasticizer
- Economical
- Flame resistant
- Moisture resistant
- Temperature range 0°F to 140°F
- Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration
- #6 x 3/4" stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Vinyl insert is gray
- Mill aluminum
Certifications
-
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
-
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
-
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
