Description

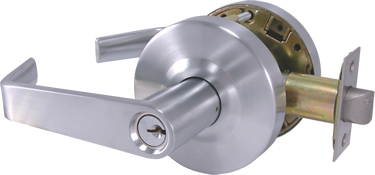

DH-X Grade 1 Lever(EA/1) SFIC(LESS CORE) Standard Keying (Schlage "C" Keyway)
- ANSI : Meets & Exceeds ANSI – A156.2, Series 4000, Grade 1 Standards
- UL Listings : UL Listed for “A” Label 3 Hour Fire Doors
- ADA Compliance : Meets ADA and ANSI A117.1 accessibility codes
- Lock Chassis : Steel, Zinc dichromated chassis for Corrosion Resistance
- Clutching : Clutching levers standard for Vandal resistance on locking functions
- Trim : 5″ Solid zinc diecast levers, 3 3/8″ wrought brass roses
- Lever Return : Anti-sag mechanism with independent lever return springs to prevent lever sag
- Handing : Non-Handed – Completely reversible (S-A & S-B lever styles are handed)
- Backset & Latchface : 2 3/4″ backset std. with 1 1/8″ x 2 1/4″ latchface, 2 3/8″ backset is available with 1″ x 2 1/4″ latchface both with self adjusting front for square or beveled edge doors
- Latchbolt : Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
- Cylinder Options : 6 Pin Brass Cylinder, C Kwy, with 2 Keys (standard), Prepared for Small format IC core (less core)
- Optional Keyways : 11 popular competitor keyways available with replacement cylinders (extra charge applies)
- Note: Replacement cylinders are supplied loose and not installed in locksets
- Strikes: 4 7/8″ x 1 1/4″ ASA standard – T strike & Full lip strikes available when specified
- Door Preparation : ANSI A115.2 – 2 1/8″ crossbore with (2) 3/8″ Thru bolt holes
- Door Thickness : Factory Set for 1 3/4″ Door thickness – 1 3/8″ require shims, can be adjusted to fit up to 2″ thick
- Lever Designs : Flat (standard, shown above), Curved, Half Curved, S-A & S-B
- Standard Finishes :US3 PVD*, US4, US10B, US15, US26 PVD*, US26D (PVD = Lifetime Finish)
- Marine Grade Option : Marine Grade 316 Stainless steel lever and rose cover upgrade available
- Fasteners: Combination screws for wood or metal doors & frames
- Warranty :Limited Lifetime Warranty
Functions
Passage
- Latchbolt operated by lever from either side at all times.
Privacy
- Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating Inside lever or closing door.
Entry
- Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by Inside lever at all times.
Classroom
- Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside with key. When outside lever Is locked, Latchbolt Is operated by key In outside lever or by rotating inside lever.
Storeroom
- Deadlocking latchbolt operated by key In outside lever or rotating inside lever. Outside lever is always locked.
